  • All in one Electrospinning Machine, TL-OMNI, Specification
    Features:
    All in one Electrospinning machine from TONG LI TECH, is a floor standing machine, equipped with almost all kinds of lab used spinnerets and collectors, 3D machinary. The extensive functions of TL-OMNI can help you achieve many different experiments.



Electrospinning Machine, TL-OMNI packing list:



1. High Voltage Power Supply Devices:

   - 0~30KV range with digital display, equipped with over-current and over-voltage protection. Output power is less than 25W.

   - Negative -20KV to 0 range with digital display, also featuring over-current and over-voltage protection.

- Automatic Negative High Voltage Compensation Function:

   This feature compensates for the weakening effect of the spinning film insulation on the electric field by adjusting the time interval and compensation voltage, maintaining a constant electric field.



2. Six-channel Pumps:

   - Six independent channels, each controlling an individual syringe.

   - Pump rate: 0.02ml/h to 99.99ml/h with a precision of ±0.01ml/h.

   - Compatible with 10ml, 20ml and 30ml syringes.

   - Specifically designed for high-voltage electrospinning, capable of handling high-viscosity liquids.

   - Digital display for easy monitoring and precise control of flow rate, injection volume, and injection time.

   - Each of the six channels can be controlled independently to set different propulsion speeds.

   - The flow rate can either be set to increase from low to high, or set to decrease from high to low.

   - Provides 99 speed combinations and can store 99 sets of speed data.



3. Drum collector, 1 set. Made from SS316



3.1 Drum 1: D=100mm, L=300mm(1-5000rpm, ±1rpm)

3.2 Drum 2: D=140mm, L=50mm for collecting highly aligned nano fiber sheet. (1-5000rpm, ±1rpm)

3.3 Big size drum collector: D=159mm, length=500mm, speed600rpm

3.4 Mandrel: D=2, 3, 4, 5, 6, 8mm, L=300mm(1-5000rpm, ±1rpm)

3.5 Disk collector: D=180mm (1-5000rpm, ±1rpm)

3.6 Cage -shaped collector : used to prepare highly oriented fibers. Speed 1-150rpm .



4. Plate collector with holder150mm*150mm, 1pc.



5. Spinnerets with Various Insulating Holders:

   - Adjustable in multiple dimensions for precise control over spray angle and position.



5.1 Single-needle spinneret with holder

5.2 Coaxial & Triaxial spinnerets with holders

5.3 Side by side nozzle: The two channels are controlled independently, and composite fiber membranes with different components can be spun. Comes with 5 sets of needles of different sizes.

5.4 V-shape spinneret, 16 needles

5.5 Tubeless spinneret, for small amount solution. Two nozzles of 10ml or 20ml can be used at the same time. A small amount of solution can be spun without tubing.

5.6 Microsphere spinneret

5.7 Micron nozzle: provide 5 micron needles with any diameter between 1-45µm, which can spin superfine fibers. It can be used for near field electrospinning.

5.8 Multi-channel spinneret



6. Light Source:

   - Specially designed LED light source for clear observation of the spinning process by naked eyes.



7. Exhaust Fan:

   - Facilitates cooling of the equipment and aids in solvent vaporization.



8. Environmental Control System:

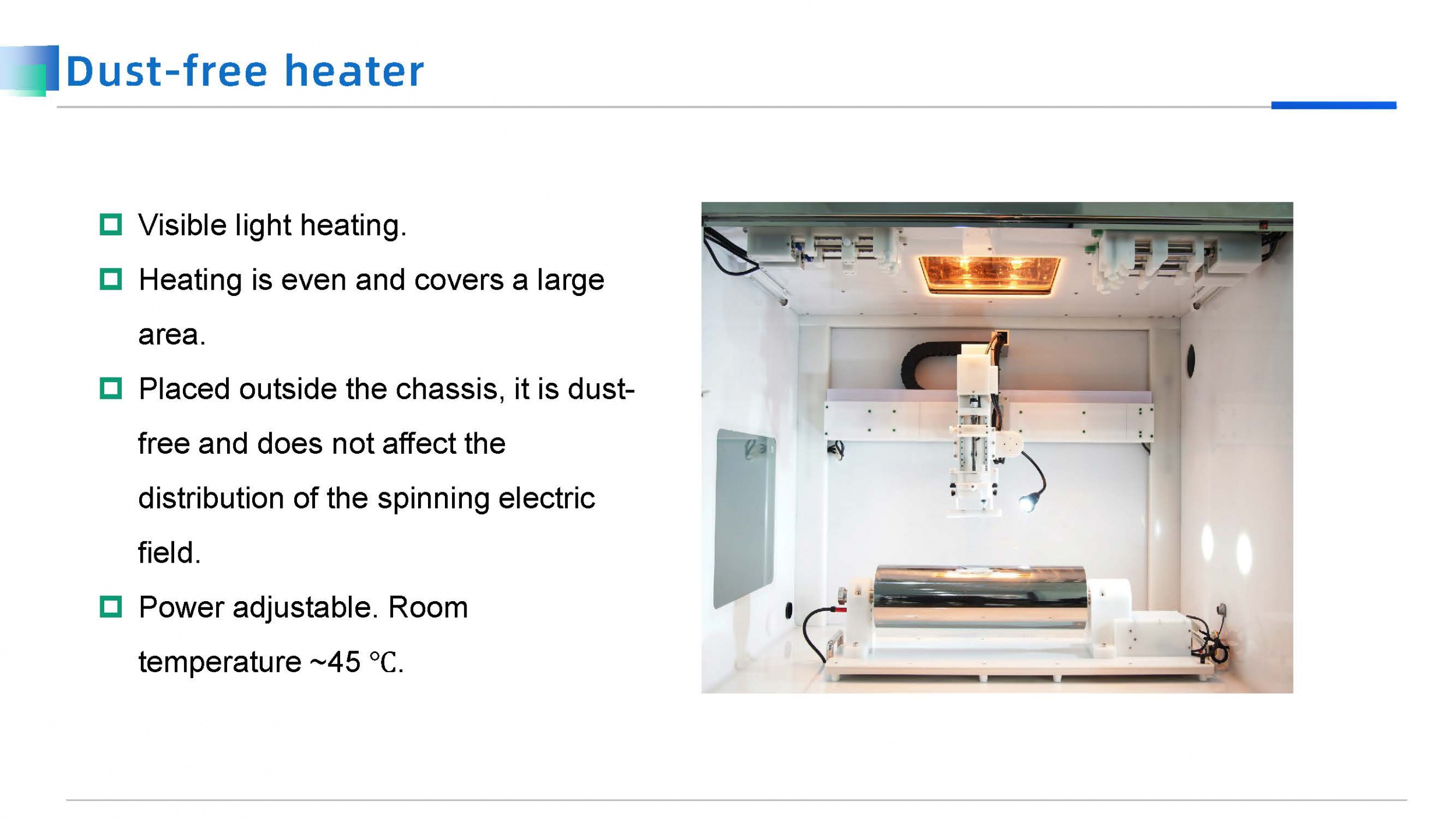

- Includes a dust-free heater, and three temperature and humidity meters for real-time monitoring.

- Dehumidifier: insert dry air to control the humidity inside the chamber.

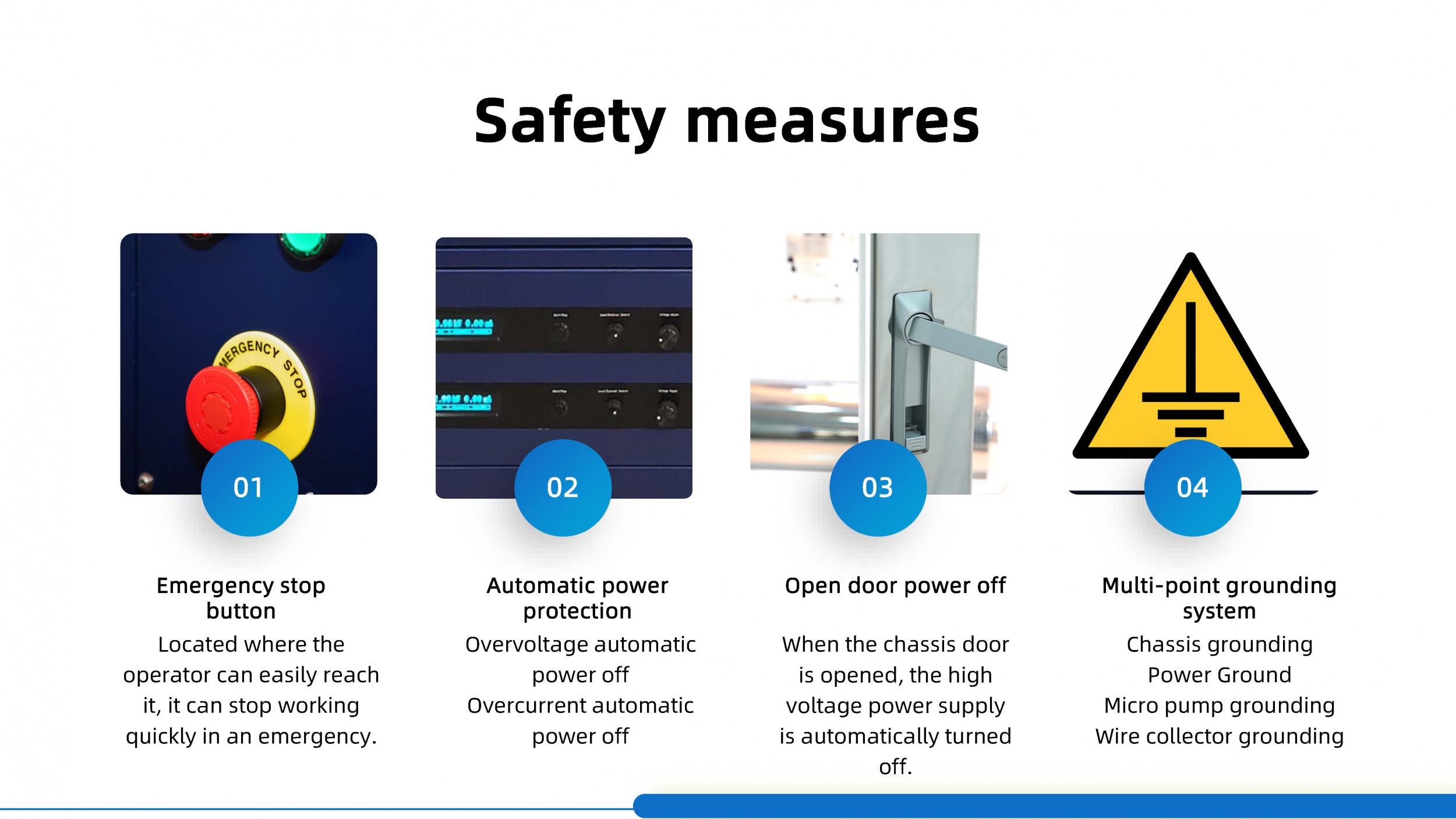

9. Safety Measures:

    - Emergency stop button.

    - Door-open and high voltage power cut-off device.

    - Static elimination device.

    - Multi-point earthing system.

    - Photography mode for clear imaging without window reflection.



10. Touch Screen Control System:

    - Controls high voltage supply devices, pumps, spinneret movement, and collector speed.

    - Allows real-time parameter adjustment and coordination of all motion units.



11.1 Spinneret Motion Control System

X-Z movement system.

X direction: Reciprocating movement left and right. Program control. Maximum stroke: 600mm, speed 040mm/s.

Z direction: move up and down. Program control. The moving distance is 200mm.



11.2 Motion control system of collector

11.2.1 Rotary collector control: servo motor, stepless speed regulation, speed accuracy +/- 1rpm. Touch screen control.

11.2.2 X-Y motion platform

X-Y mobile platform.

X direction: left and right reciprocating motion, program control. Maximum stroke: 300mm, speed 040mm/s.

Y direction: Back and forth reciprocating motion, program control. Maximum stroke: 300mm, speed 040mm/s.



12. Consumables:

       - Syringes : 100 syringes including 10ml, 20ml, 50ml.

- Needles: 100 pcs .

- PTFE tubes (PP Luer connector): 60 pieces .

- Reusable PP luer lock connectors + PTFE hose: 200 m .

- PVA solution or PVA dry powders for electrospinning, MW80000, 10wt%.



13. Online Auto Cleaning Device for Needles:

    - Automatically cleans needles with adjustable frequency.



14. Tool box: 1 set Provided



15. Equipment Dimensions:

    - 1.50m x 0.85m x 1.74m (H).



16. Chamber, insulation inner chamber

- Constructed with High-quality metal and PP/PE insulated inner wall for easy cleaning and good insulation.

- Equipped with observation windows, 3 temperature and humidity meters, exhaust system, UV disinfection lamp.

- The chamber is grounded to ensure safe operation.

- Super clean chamber.

- Vision system, the spinning process can be clearly observed by the naked eye without a high-speed camera.

- Gas inlet



17. Installation Requirements:

    - Ceiling height > 2m.

- Floor space of 2m x 1.5m.

- A table. The device can be placed either on a low table or directly on the ground.

    - Reliable grounding equipment and exhaust pipes. Connecting with exhausting system of the machine. Inner Diameter of the pipe=100mm.



Installation is straightforward, supported by detailed videos and pictorial instructions provided.



18. Warranty: 1 year. After warranty, lifetime maintenance will be provided.
