Multi-needle electrospinning for production

Multi-needle electrospinning is widely used to scale nanofiber production. TONGLI offers different needle counts and arrangements, combined with controlled motion to produce uniform membranes from laboratory trials through pilot-scale work to production.

Compared with needleless electrospinning, the listed advantages are:

1. Flexible needle combinations and arrangements.

2. Close control of spinning process parameters.

3. Stable solution viscosity and concentration.

4. Compatible with TONGLI’s automatic needle-cleaning device.

5. Straightforward temperature and humidity control for production systems.

6. The original product description states that multi-needle electrospinning technology is not subject to patent restrictions.

7. Numerous established applications are available as references.

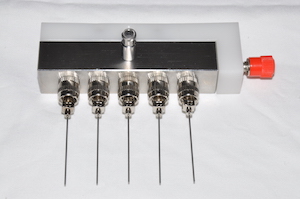

Linear multi-needle array for laboratory use

Circular multi-needle array

Circular coaxial array — each outlet is a coaxial spinneret

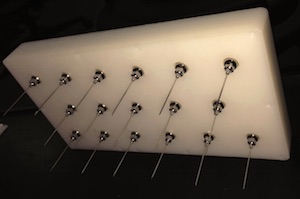

Multi-needle matrix

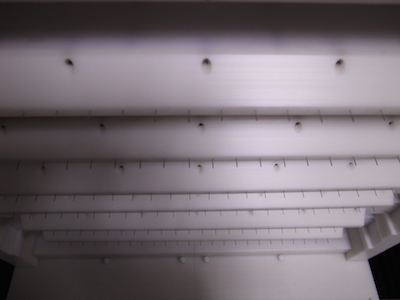

Production arrays: 192 × N groups. Needle count and layout can be configured for the required membrane thickness.

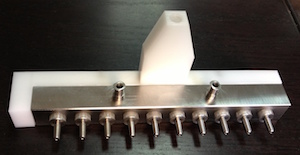

Simplified production multi-needle array

Needle counts range from thousands to tens of thousands. Contact us to discuss the configuration.
