Enlarge image ↗Laboratory
TL-F8
Dual-channel laboratory syringe pump
Precise low-flow delivery for electrospinning, electrospraying and laboratory process development.
Explore this systemFeeding, power & process modules
Precision syringe pump for electrospinning
Two models for different stages of your process: TL-F8 provides dual-channel micro-flow delivery for laboratory work, while TL-F20 offers high-capacity, multi-channel delivery for production.
Enlarge image ↗
Enlarge image ↗Production
TL-F20
High-capacity syringe pump for production
Standalone multi-channel delivery for pilot trials, scale-up and long production runs.

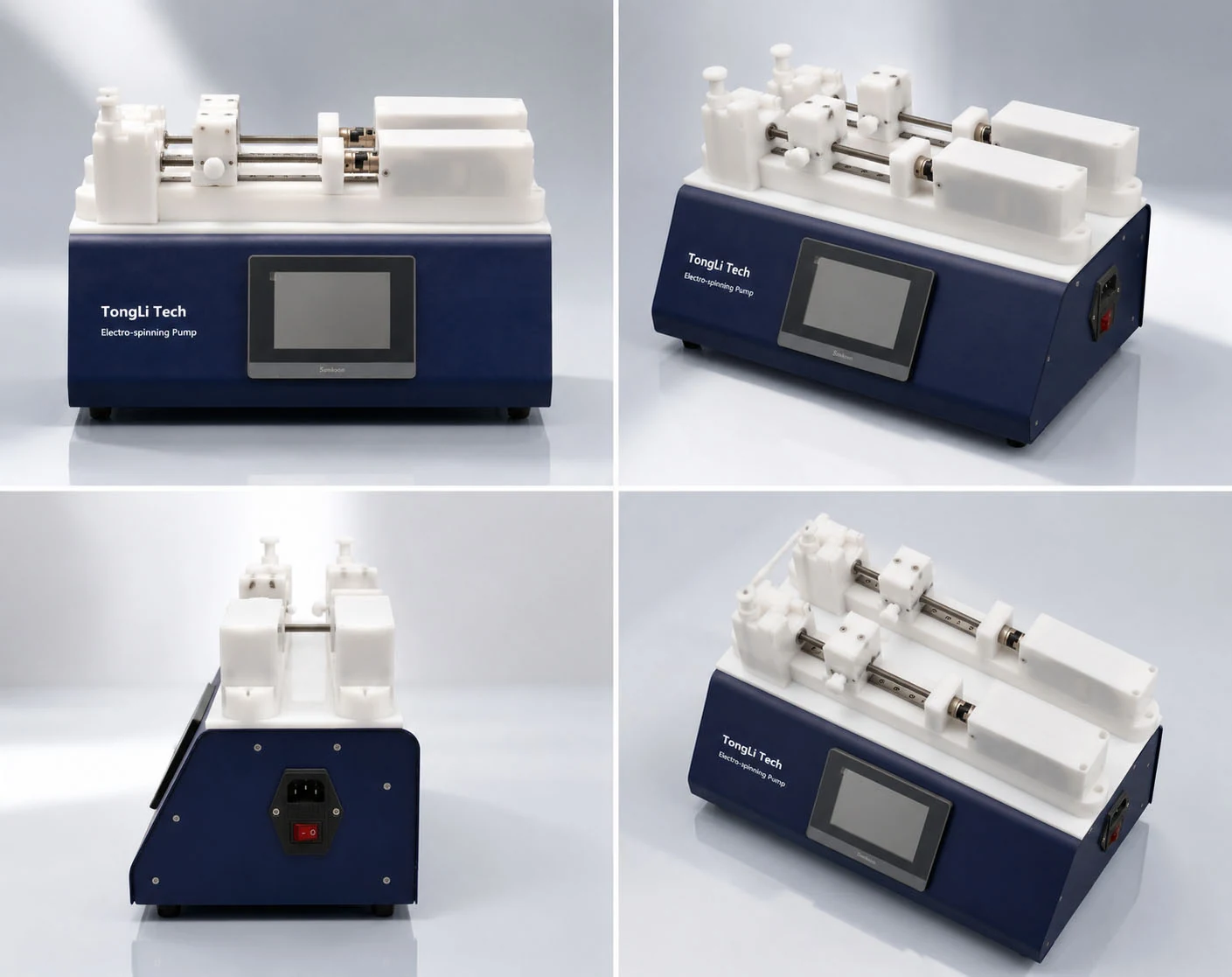

Explore this systemTL-F8 · Laboratory
Dual-channel laboratory syringe pump
Enlarge image ↗Precise feeding for stable electrospinning
The TL-F8 combines a precision servo motor with microprocessor control for continuous low-flow delivery in electrospinning, electrospraying and laboratory fluid handling. A high-thrust drive supports viscous polymer solutions, with design provisions for high-voltage environments.
Stable feeding helps maintain a steady Taylor cone, consistent fiber diameter and repeatable experiments.
Discuss your applicationPrecise low-flow delivery
Flow resolution of 0.01 mL/h for fine adjustment in electrospinning and electrospraying.
Precision servo drive
Servo drive improves low-speed stability and consistency during extended runs.
Touchscreen control
Panasonic touchscreen with clear parameter display and direct setting controls.
High-thrust drive
Consistent drive force for viscous polymer solutions.
Designed for high-voltage environments
Electrostatic and interference protection is incorporated for electrospinning operation.
Multiple syringe sizes
Supports 10 mL, 20 mL and other standard syringes.
Stable delivery and practical control
Continuous infusion:Sustained feeding for extended electrospinning runs.
Volume-controlled delivery:Set the total delivery volume to manage material usage and process duration.
Overload protection:Integrated overload protection for the drive system.
Stable operation:Drive and control optimized for long runs and repeat process trials.
TL-F8 specifications
| Parameter | Specification |
|---|---|
| Model | TL-F8 |
| Delivery channels | 2 channels |
| Drive system | Precision servo motor |
| Control interface | Panasonic touchscreen |
| Display | Color LCD touchscreen |
| Control | Microprocessor control |
| Flow range | 0.02–99.9 mL/h |
| Minimum flow | 0.01 mL/h |
| Flow resolution | 0.01 mL/h |
| Syringe compatibility | 10 mL, 20 mL and other standard syringes |
| Pumping mode | Continuous infusion |
| Total volume setting | Programmable total delivery volume |
| Drive capability | High thrust for viscous solutions |
| Protection | Overload protection |
| Electrostatic protection | Interference-resistant design for high-voltage environments |
| Operation | Stable, precise, continuous flow control |
Research and materials processing
- Electrospinning
- Electrospraying
- Tissue engineering
- Nanofiber fabrication
- Drug-delivery research
- Biomedical research
- Functional materials research
- Laboratory fluid handling

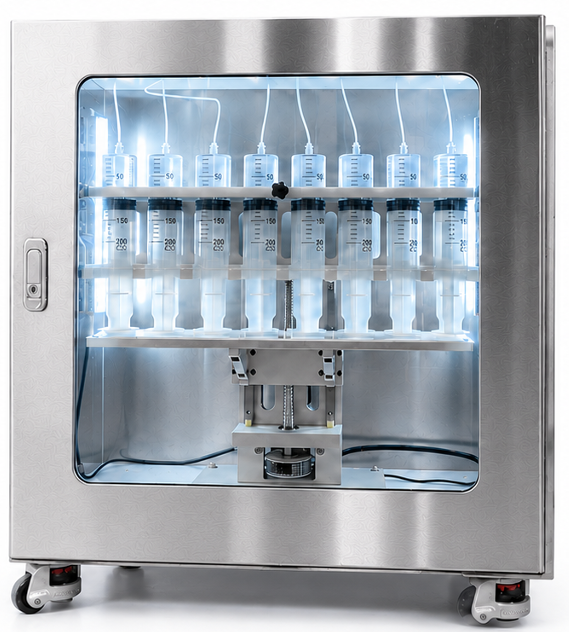

TL-F20 · Production
TL-F20 — From pilot trials to production
A separate, high-capacity syringe pump for batch production and long-duration electrospinning. Connect it to the process equipment through tubing and configure the delivery system around your throughput requirements.
Enlarge image ↗Extended continuous delivery
Supports pilot trials, scale-up and long-duration operation.
Coordinated multi-channel delivery
Stable, consistent flow supports higher overall throughput.
Separate unit with tubing connection
Flexible installation for different equipment and laboratory layouts.
Process integration
Works with multi-spinneret systems and continuous collection modules.
Optional configurations are available for specific processes and throughput requirements.
Discuss your applicationRelated systems
Tell us what you want to make.
Share your material, target structure and sample size. We can discuss a suitable platform and configuration.
