Three concentric flow paths for combining three materials in nano- and microfibers. Interchangeable needles let you choose a configuration for the materials and solution viscosities you use.
Enlarge image ↗
Enlarge image ↗

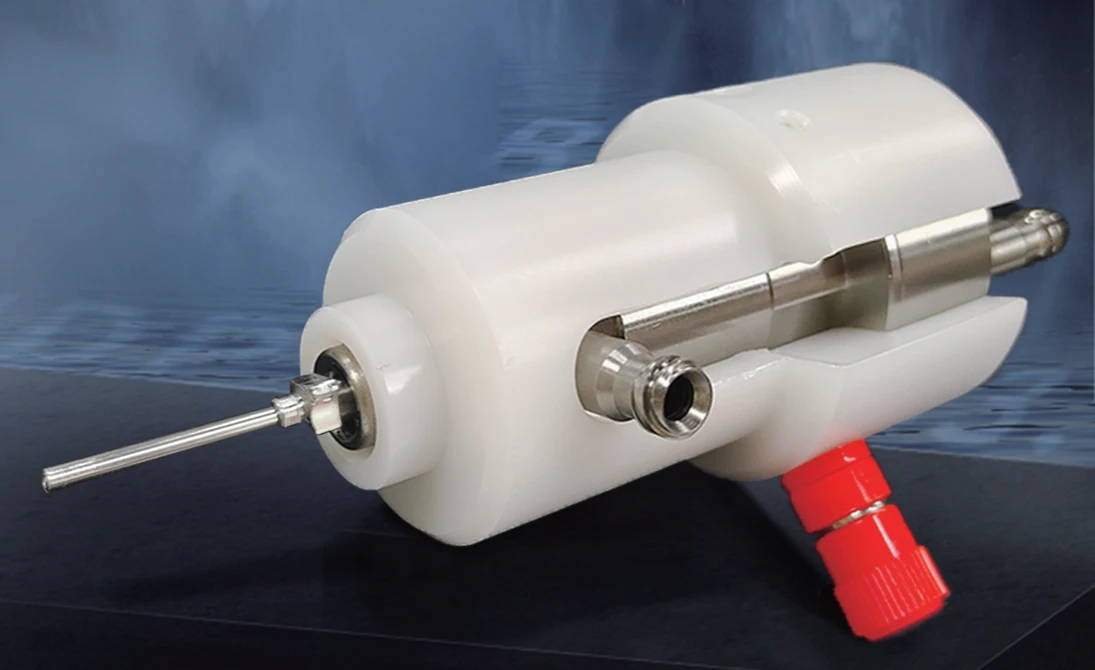

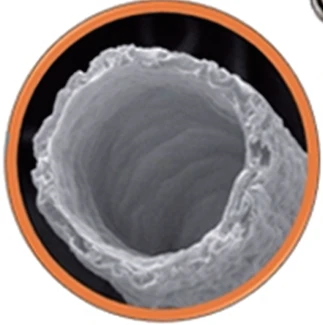

Enlarge image ↗The three-layer head combines polymer streams with different properties in a concentric structure. For suitable formulations, a more readily spinnable inner material can support a less-spinnable outer material. Needle combinations can be changed to suit the formulation.

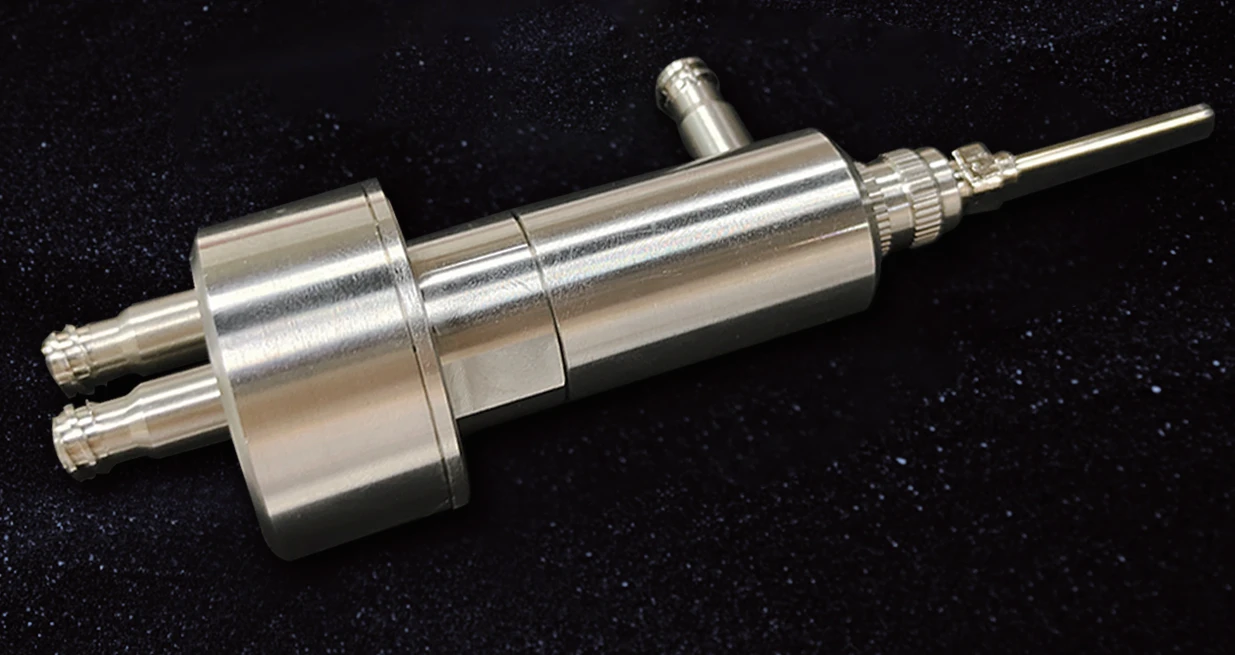

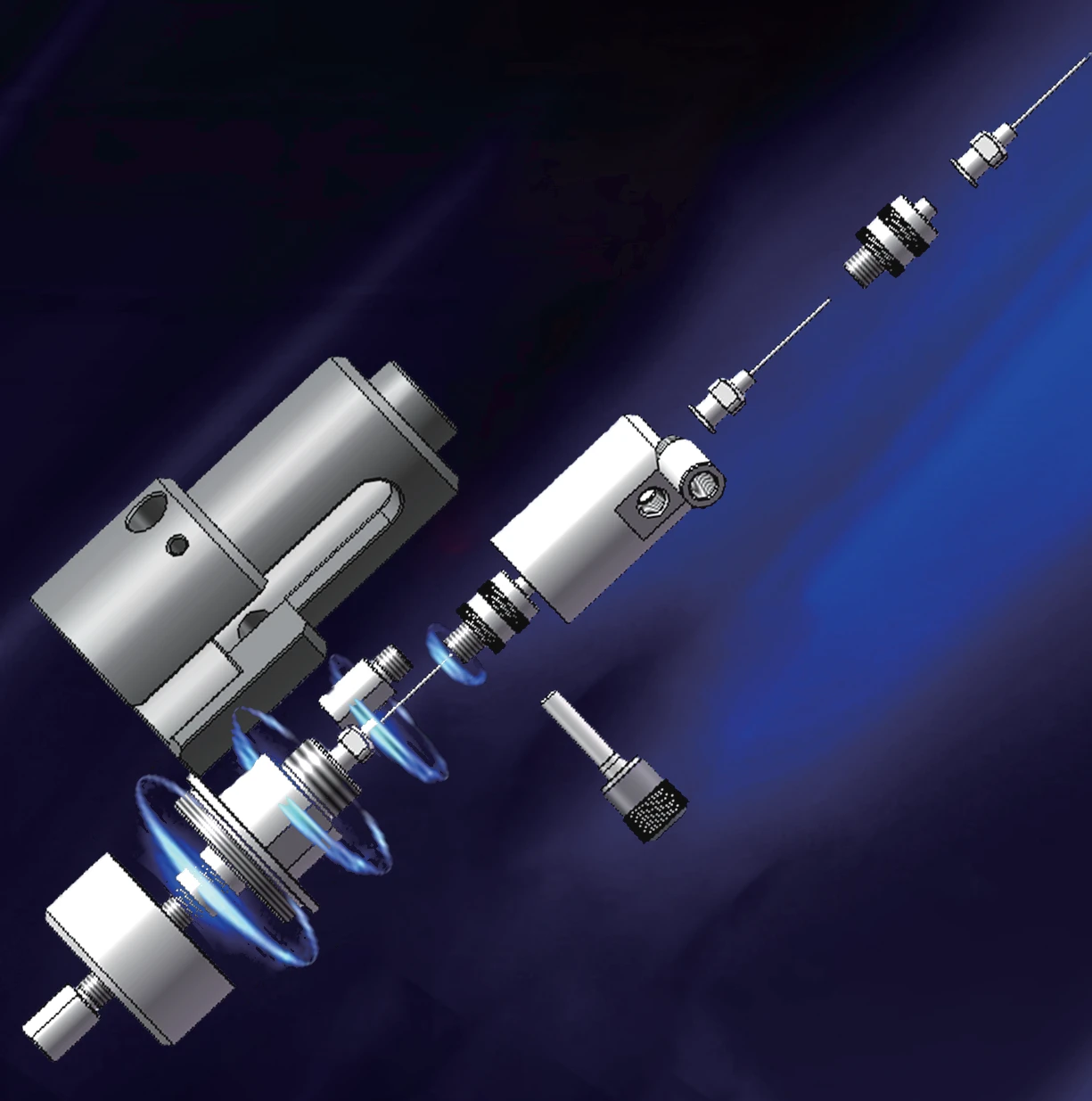

Enlarge image ↗The stainless-steel internal assembly can be fully disassembled so each component is accessible for cleaning. The small internal cavity limits the solution retained in the head.
Enlarge image ↗

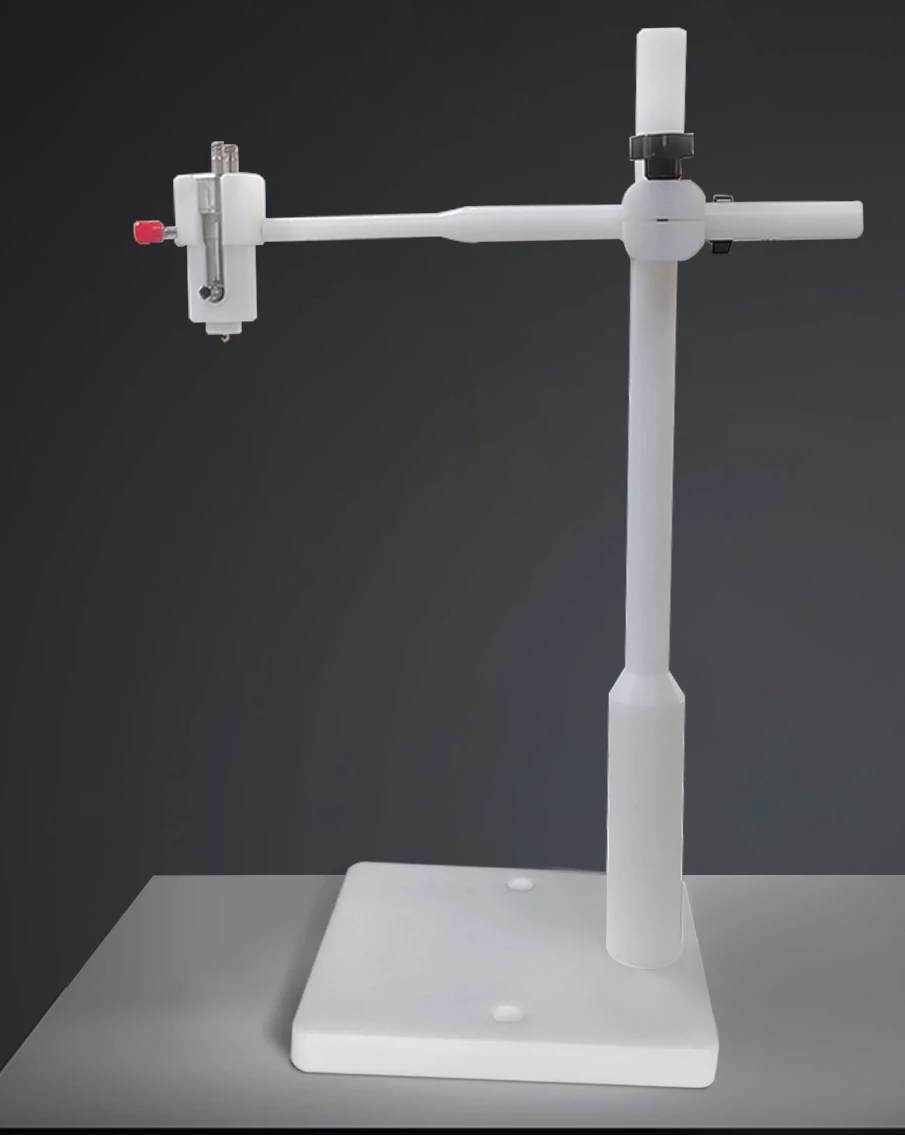

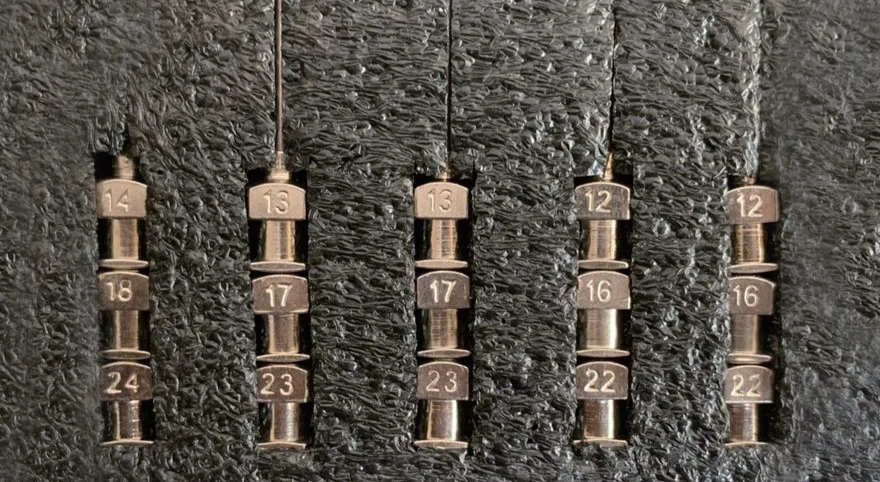

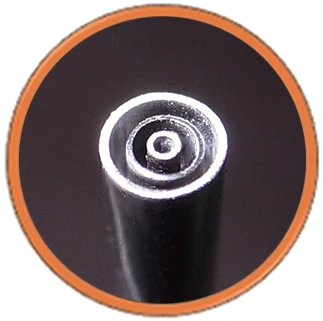

Enlarge image ↗Elongated needles concentrate the electric field at the tip. The inner-to-outer needle-tip height difference is adjustable up to 1.5 mm. The insulating fixture adjusts the spinning angle and height. Standard Luer connections, a high-voltage socket and plug, and concentric needle alignment support setup.

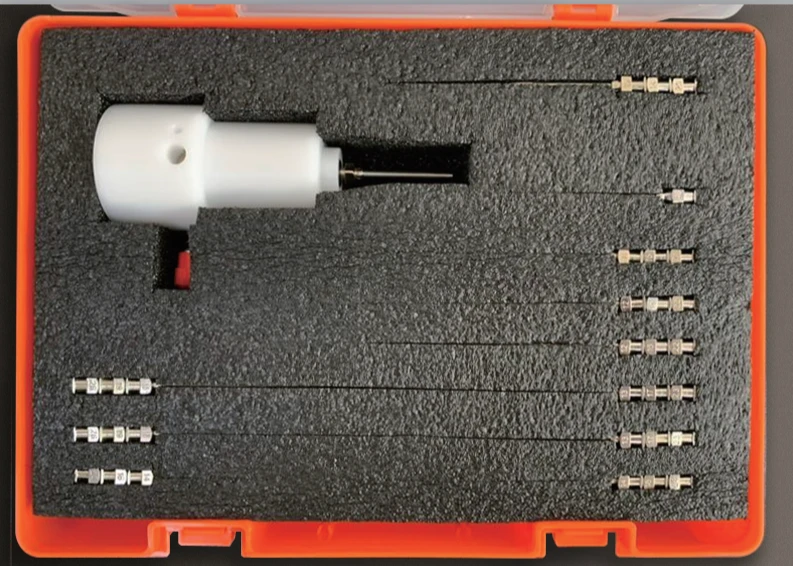

Model dimensions and the general needle-gauge reference are listed separately. Please specify the model and required dimensions when ordering.
Needle length: 40 mm
| Layer | Outer diameter (mm) | Inner diameter (mm) | Needle size |
|---|---|---|---|
| Inner | 0.7 | 0.390 | No. 7 (22G) |
| Middle | 1.2 | 0.790 | No. 12 (18G) |
| Outer | 2.0 | 1.60 | No. 20 (14G) |
Needle length: 60 mm
| Layer | Outer diameter (mm) | Inner diameter (mm) | Needle size |
|---|---|---|---|
| Inner | 0.7 | 0.390 | No. 7 (22G) |
| Middle | 1.2 | 0.790 | No. 12 (18G) |
| Outer | 2.0 | 1.60 | No. 20 (14G) |
Needle length: 40 mm
| Layer | Outer diameter (mm) | Inner diameter (mm) | Needle size |
|---|---|---|---|
| Inner | 0.7 | 0.390 | No. 7 (22G) |
| Middle | 1.2 | 0.790 | No. 12 (18G) |
| Outer | 1.8 | 1.4 | 15G |
Needle length: 60 mm
| Layer | Outer diameter (mm) | Inner diameter (mm) | Needle size |
|---|---|---|---|
| Inner | 0.7 | 0.390 | No. 7 (22G) |
| Middle | 1.2 | 0.790 | No. 12 (18G) |
| Outer | 1.8 | 1.4 | 15G |
Needle length: 40 mm
| Layer | Outer diameter (mm) | Inner diameter (mm) | Needle size |
|---|---|---|---|
| Inner | 0.5 | 0.232 | No. 5 (25G) |
| Middle | 0.9 | 0.560 | No. 9 (20G) |
| Outer | 1.6 | 1.100 | No. 16 (16G) |
Needle length: 60 mm
| Layer | Outer diameter (mm) | Inner diameter (mm) | Needle size |
|---|---|---|---|
| Inner | 0.5 | 0.232 | No. 5 (25G) |
| Middle | 0.9 | 0.560 | No. 9 (20G) |
| Outer | 1.6 | 1.100 | No. 16 (16G) |
| Gauge | Inner diameter (mm) | Outer diameter (mm) |
|---|---|---|
| 10G | 2.70 ± 0.02 | 3.43 ± 0.02 |
| 11G | 2.64 ± 0.02 | 3.06 ± 0.02 |
| 12G | 2.40 ± 0.02 | 2.75 ± 0.02 |
| 13G | 1.99 ± 0.02 | 2.41 ± 0.02 |
| 14G | 1.69 ± 0.02 | 2.11 ± 0.02 |
| 15G | 1.45 ± 0.02 | 1.81 ± 0.02 |
| 16G | 1.25 ± 0.02 | 1.61 ± 0.02 |
| 17G | 1.12 ± 0.02 | 1.48 ± 0.02 |
| 18G | 0.91 ± 0.02 | 1.26 ± 0.02 |
| 19G | 0.72 ± 0.02 | 1.06 ± 0.02 |
| 20G | 0.62 ± 0.02 | 0.90 ± 0.02 |
| 21G | 0.51 ± 0.02 | 0.81 ± 0.02 |
| 22G | 0.41 ± 0.02 | 0.71 ± 0.02 |
| 23G | 0.33 ± 0.02 | 0.63 ± 0.02 |
| 24G | 0.31 ± 0.02 | 0.55 ± 0.02 |
| 25G | 0.26 ± 0.02 | 0.51 ± 0.02 |
| 26G | 0.23 ± 0.02 | 0.45 ± 0.02 |
| 27G | 0.19 ± 0.02 | 0.41 ± 0.02 |
| 28G | 0.17 ± 0.02 | 0.35 ± 0.02 |
| 30G | 0.13 ± 0.02 | 0.31 ± 0.02 |
| 31G | 0.12 ± 0.02 | 0.26 ± 0.02 |
Enlarge image ↗
Enlarge image ↗
Enlarge image ↗Share your material, target structure and sample size. We can discuss a suitable platform and configuration.
