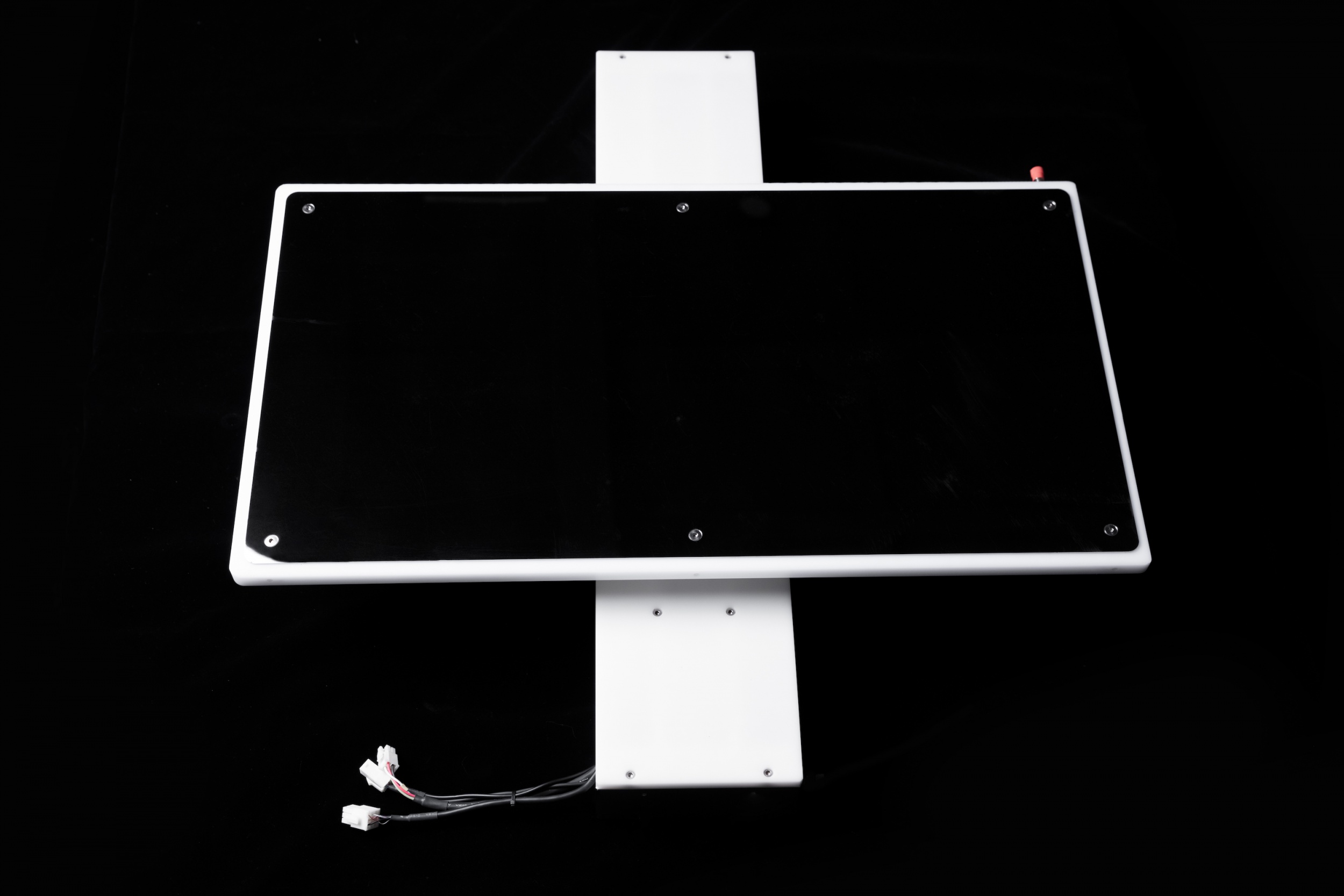

X-Y Moving stage

Price Interview

X-Y Moving stage

Interview

Product Detail

1. X-Y moving stage is quite useful for making even fiber film on inflexible materials. It can be used as a holder for glass or ceramic, and other inflexible materials, to make even nanofiber film or nanoparticle film on the surface of the collector.

2. As for Near-field Electrospinning & Melt Electrospinning 3D Direct writing (3D printing), a fast moving X-Y stage can be as collector to make a certain pattern which can be designed or drawed by CAD or other software.


Specification of X-Y Moving stage：

TL-HP500 X-Y Specification：（High precise, recommend for Near-field electrospinning）


（1）Travel Positioning Accuracy：2um

（2）Repeatability：1um

（3）Max Travel：X axis*Y axis =200*200mm

（4）Weight：<10kg

（5）Control method：By computer

（6）Power source：220V，50/60Hz

（7）Speed：0~500mm/s


TL-HP250 X-Y specification：


（1）Repeatability：<5um

（2）Max Travel：X axis*Y axis =150*150mm，（尺寸大的话，可能放不进TL-Pro-BM的机器里面。）

（3）Dimension：350*350mm*250mm

（4）Weight：<10kg

（5）Control method: Control box

（6）Power source: 220V，50/60Hz

（7）Speed：0~250mm/s


TL-200 X-Y specification：（Used for TL-Pro-BM and TL-BM-300）


（1）Repeatability：<50um

（2）Max travel：X axis*Yaxis =200*200mm

（3）Speed：0~30mm/s

（9）Materials: POM, PP, PE, PTFE

X-Y stage


X-Y moving stage
