Enlarge image ↗Fiber bridging between the discs

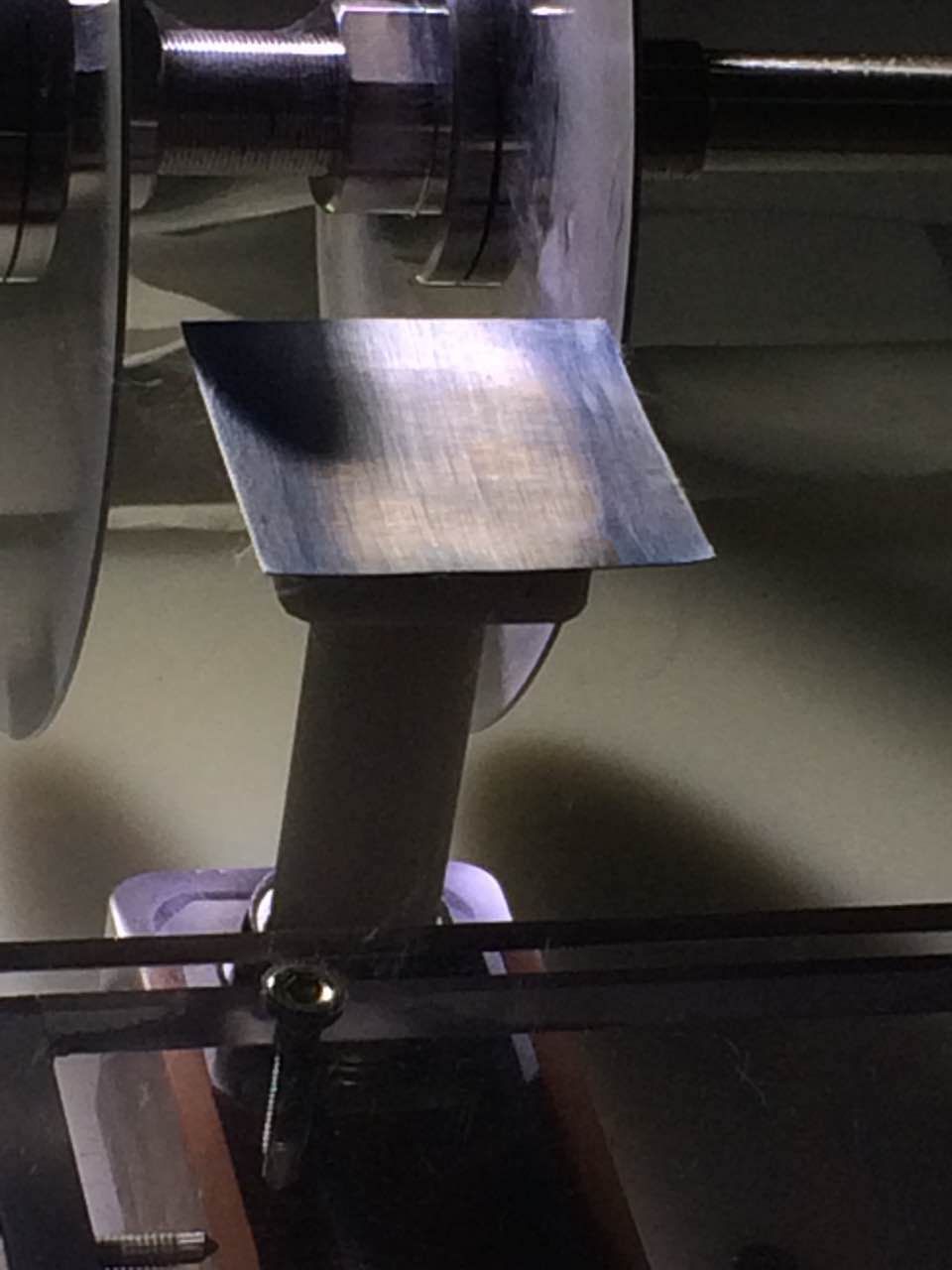

Fibers span the gap between the two discs. The photograph shows the bridging region and the collection surface positioned below it.
Accessories & Materials
Cross-aligned fiber collector
Collect fibers in two intersecting directions to form grid-like nanofiber membranes. A large-area configuration is available for membranes up to 100 × 100 mm.
Enlarge image ↗How cross-aligned collection works
Fibers are collected in one direction, the collection surface is turned by 90°, and deposition continues to create a second, perpendicular fiber direction.
- 01
Prepare the collection surface
- 02
Collect the first fiber layer
- 03
Turn the surface by 90°
- 04
Continue collecting across the first layer
Collection sequence — schematic, not to scale.
Collection & mechanical design
Enlarge image ↗Fiber morphology
Enlarge image ↗Cross-aligned fiber structure
The SEM image shows the grid-like arrangement of fibers collected in intersecting directions.
Tell us what you want to make.
Share your material, target structure and sample size. We can discuss a suitable platform and configuration.
