Spinnerets & needles
Feed two spinning solutions through separate channels and rotate the twin nozzles to form twisted composite fibers. Designed for electrospinning writing, with mounting compatibility for TL-Trinity.

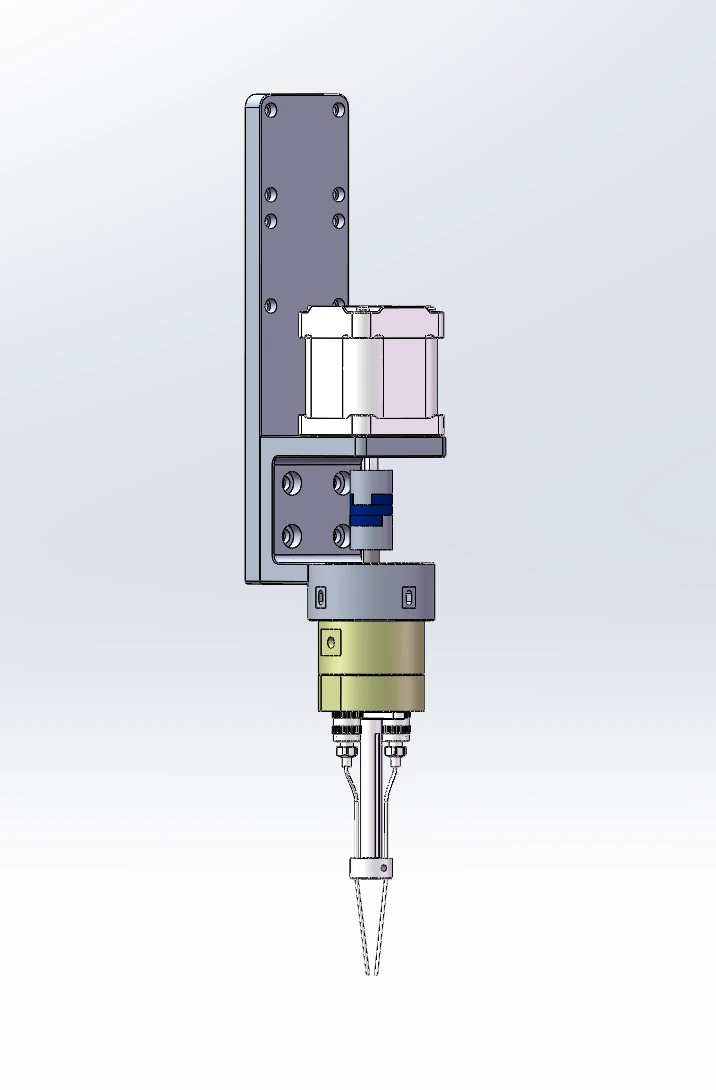

The dual-channel extrusion mechanism delivers two spinning solutions at the same time. Continuous nozzle rotation twists the emerging fibers before collection. A bearing assembly separates rotation from fluid delivery, keeping the supply tubing stationary as the nozzles rotate.
Enlarge image ↗
Enlarge image ↗

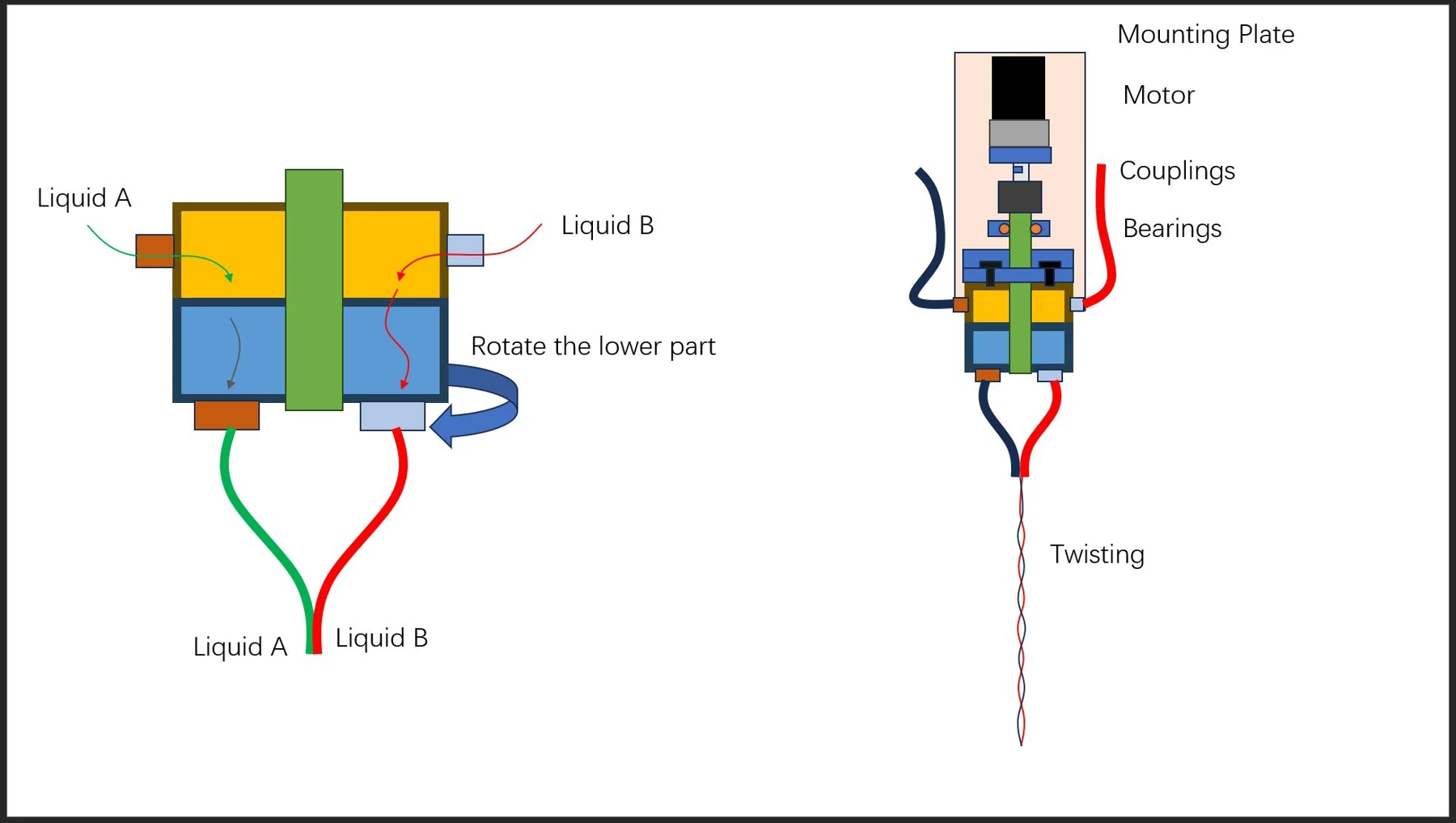

Enlarge image ↗Liquid A and liquid B travel through separate flow paths to the twin nozzles. The motor drives the lower rotating assembly through a coupling and bearings. Keeping the feed conduits stationary prevents tubing from winding around the rotating head.

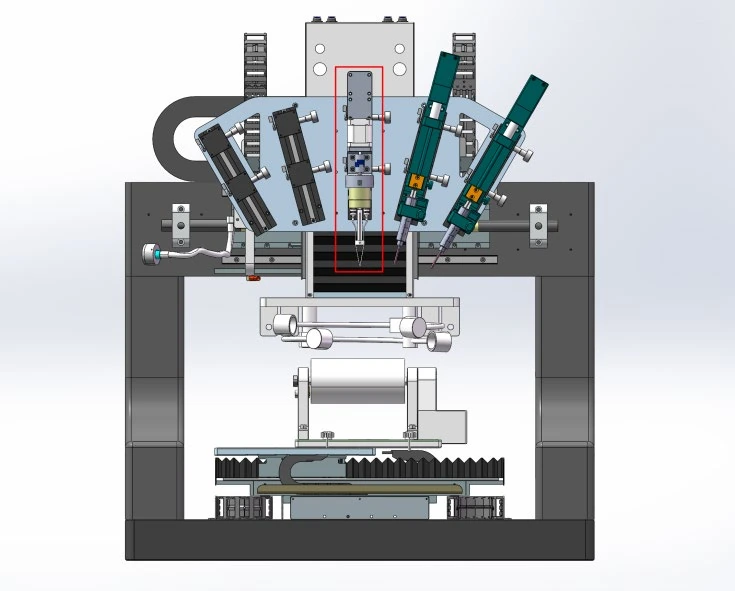

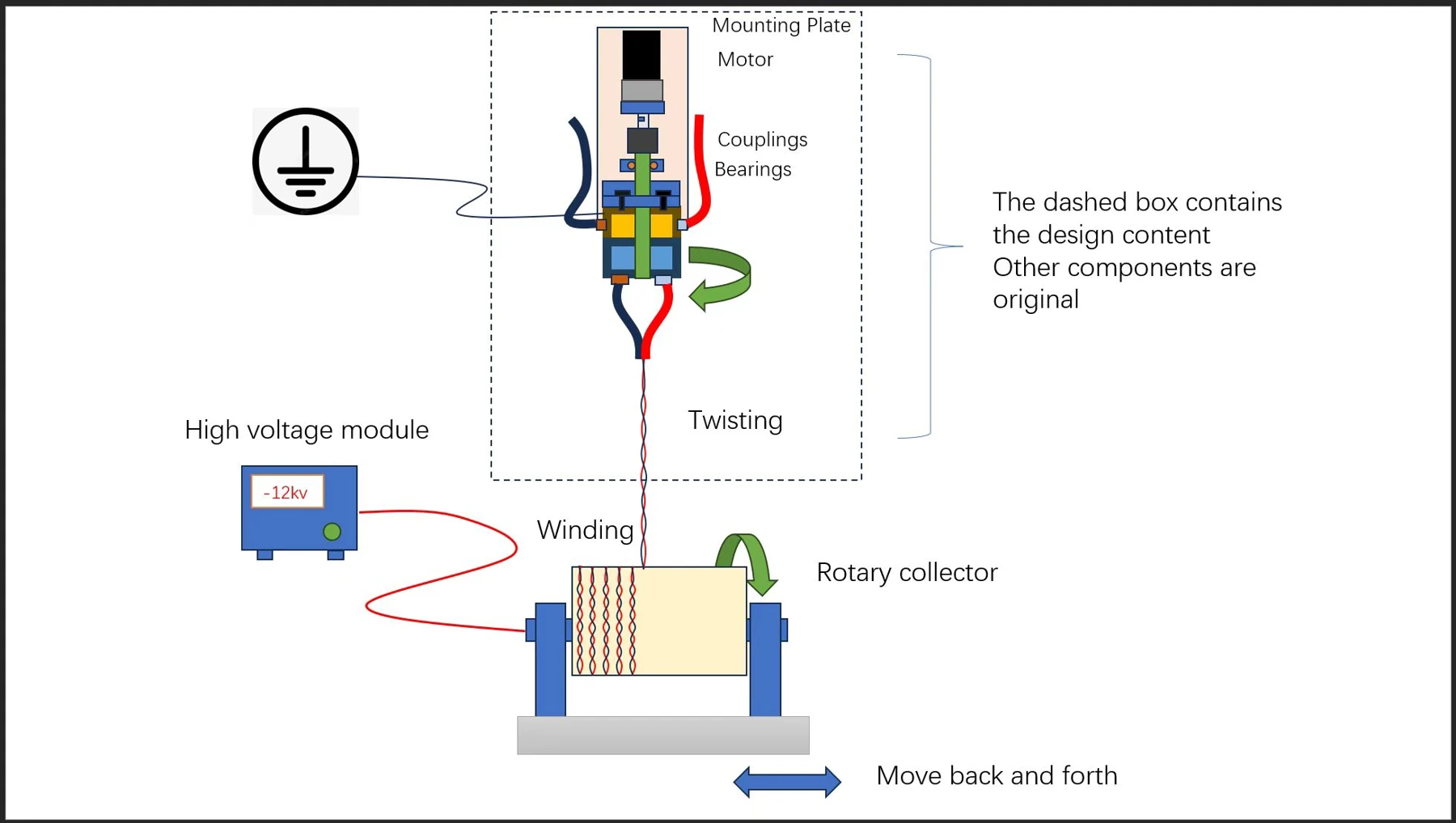

Enlarge image ↗The system diagram shows the rotating spinneret above a rotary collector. Fibers are twisted as they leave the head and then wound onto the collector, with back-and-forth collector motion. The mounting plate connects the spinneret to the TL-Trinity slider mechanism.
Explore TL-TrinityStandard Luer-lock connections allow quick changes between 18G–32G needles.
A centrally mounted adjustment disk allows coplanar and coaxial positioning of the twin nozzles.
The linear slider adjusts the collection distance over a 50–300 mm range.
The groove-aligned flange supports quick disassembly and reassembly for maintenance.
| Parameter | Specification |
|---|---|
| Solution channels | 2 independent channels |
| Rotation speed | 1–100 rpm, digitally adjustable |
| Needle range / connection | 18G–32G / Luer-lock |
| Adjustable collection distance | 50–300 mm |
| Drive | Flange-integrated servo motor |
| Continuous operation | ≥10 min |
| Mounting compatibility | TL-Trinity slider, with custom mounting plate |
Share your material, target structure and sample size. We can discuss a suitable platform and configuration.
