Electrospinning Machine, TL-ULTRA technical data sheet:

1. Two High voltage power supply devices:

 1st, 0~30KV, digital display, over-current & over-voltage protection. Output power<25W.

 2nd, -20KV ~0, digital display, over-current & over-voltage protection.



Negative high voltage automatic compensation function:

By setting the time interval and the compensation voltage, the weakening effect of the insulation of the spinning film on the electric field is compensated, and the electric field is kept constant.

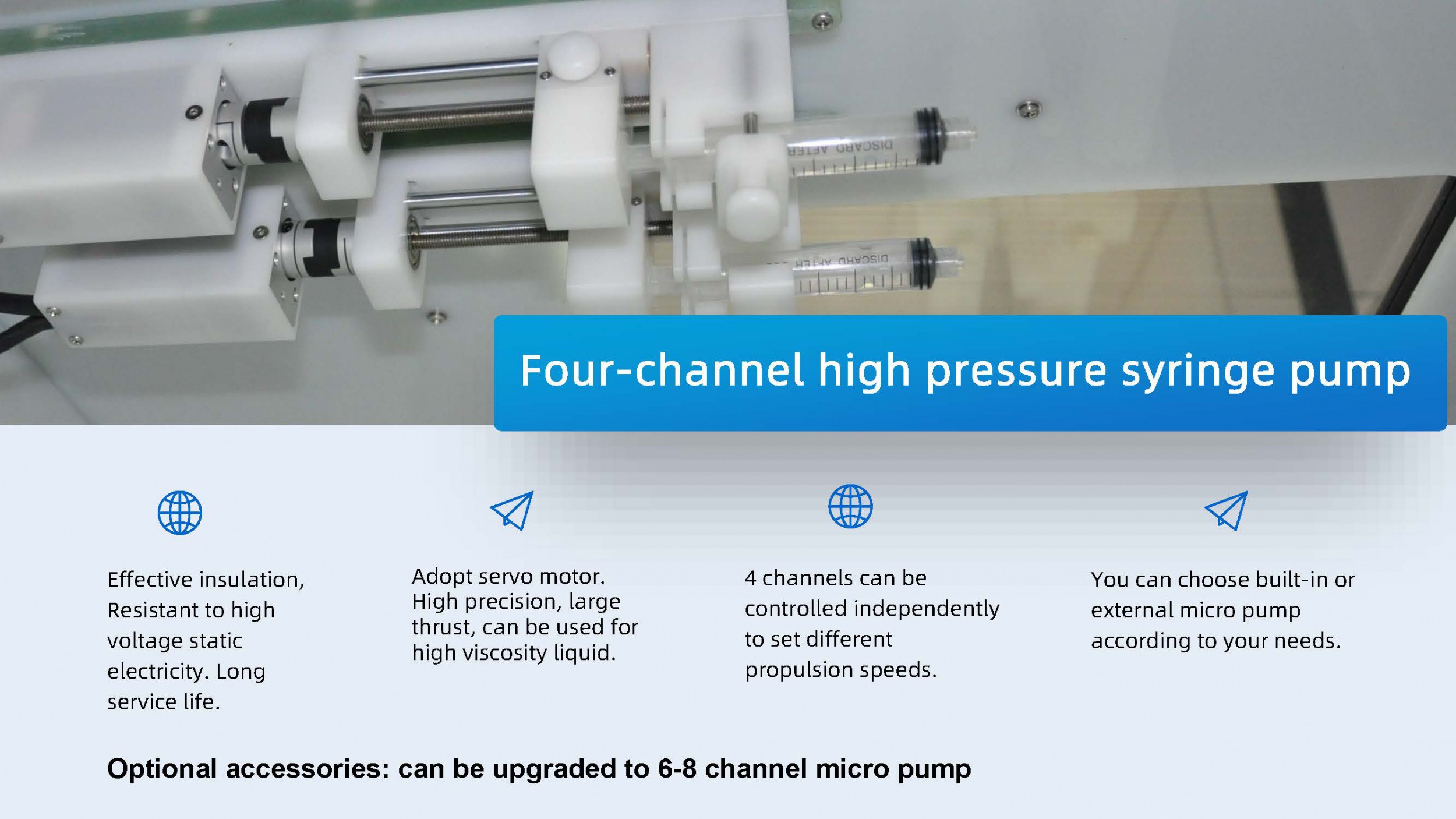

2. Four-channel pumps: Totally 4 channels, each channel can be controlled independently for individual syringe.  Pump rate: 0.02ml/h~99.99ml/h ±0.01ml/h 10ml20ml syringes can be used.

Designed for high-voltage electrospinning, the injection thrust is 3-5 times that of ordinary medical syringe pumps, and can be used for high-viscosity liquids. At the same time, a specially designed insulation system separates the power part of the micropump from the syringe loaded with high-pressure liquid, which is suitable for transmitting various liquids for electrospinning. Easy to use, digital display. Flow rate, injection volume, and injection time can all be precisely controlled. The 4 channels can be controlled independently to set different propulsion speeds. It can be used with various syringes of different specifications.

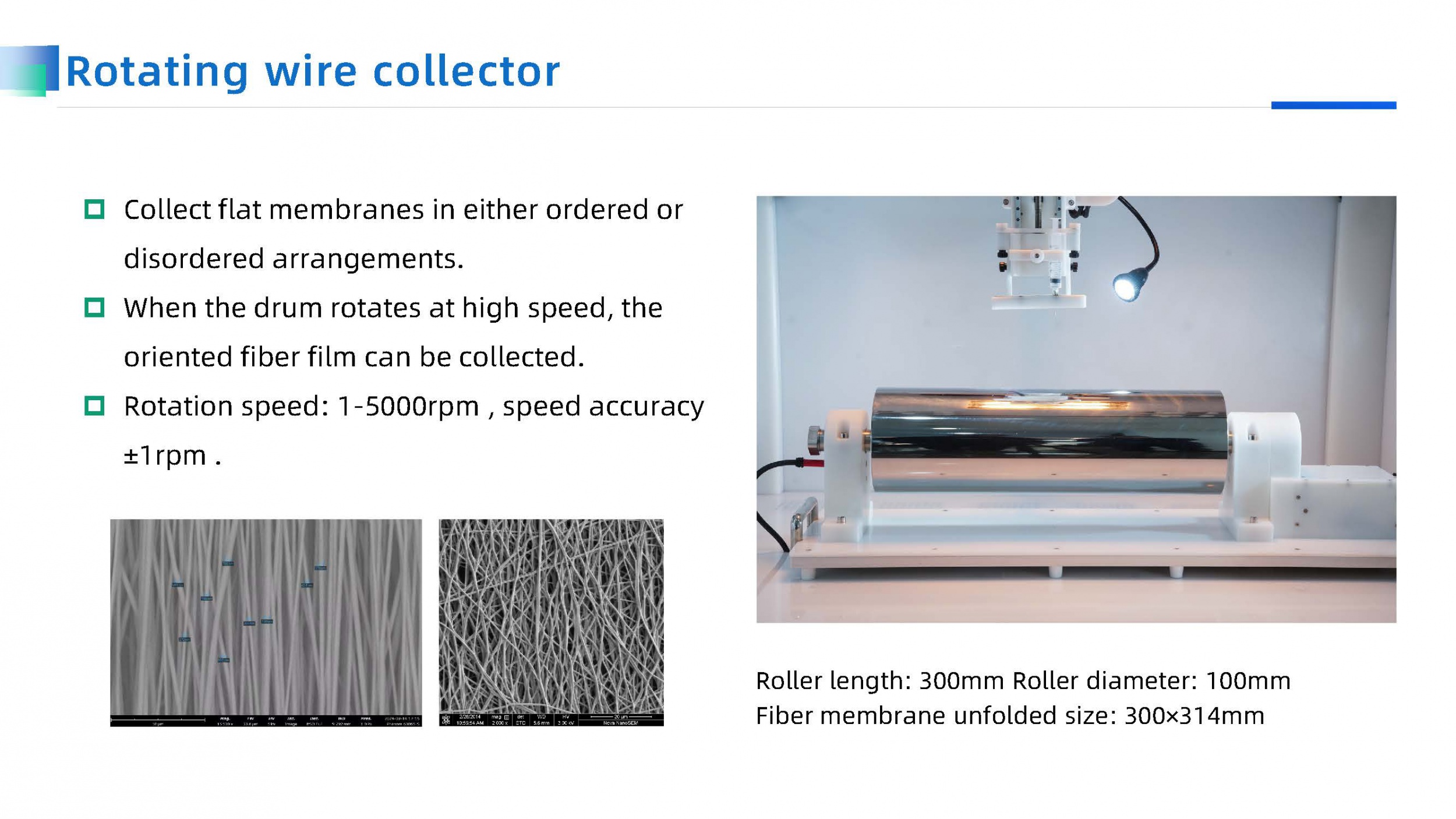

3. Drum collector(1-5000rpm), 1 set.



Drum 1: D=100mm, L=300mm

Drum 2: D=140mm, L=50mm for collecting highly aligned nano fiber sheet.

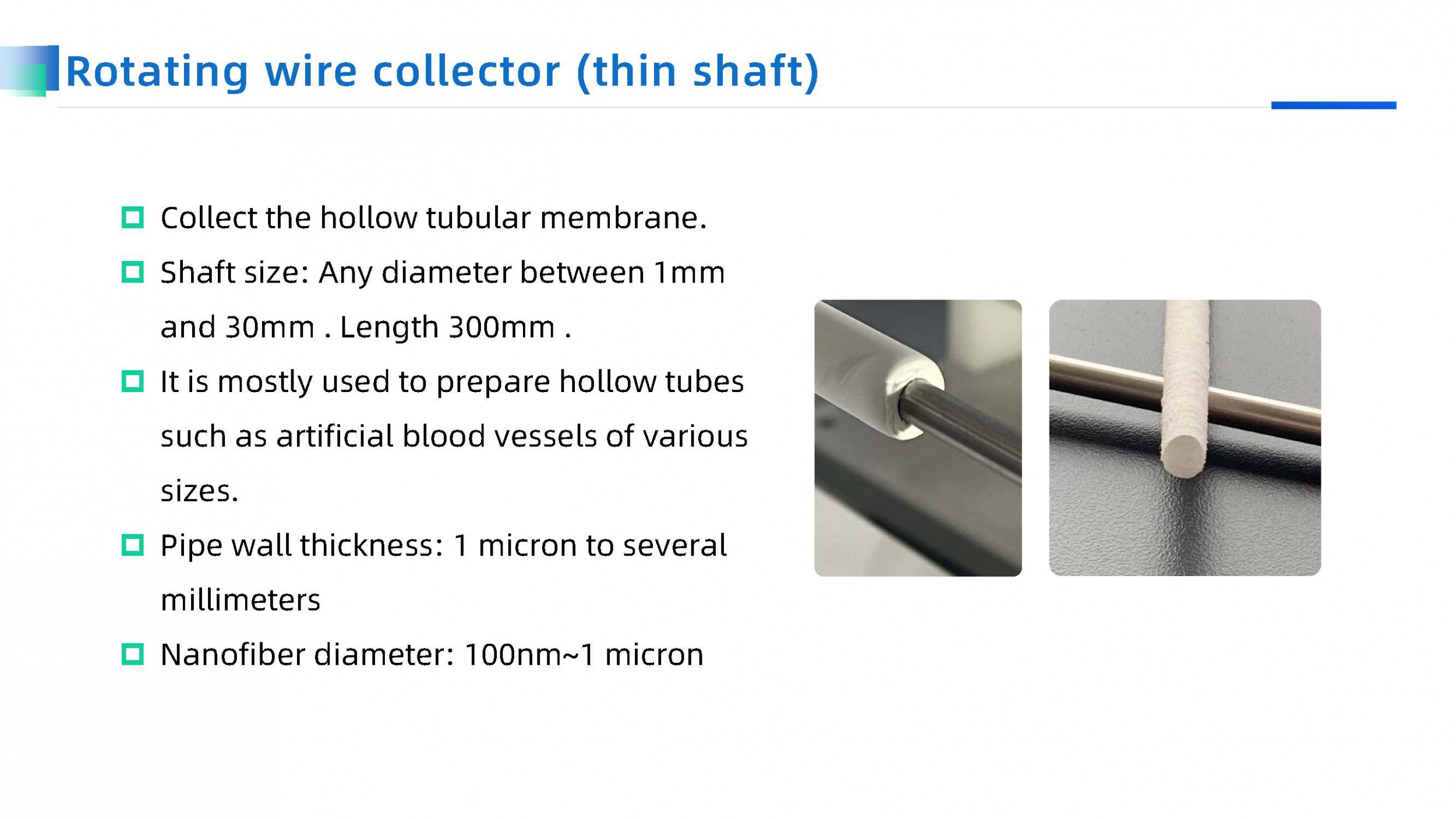

Mandrels: D=234568mm, L=300mm

Grooved Drum: D=110mm

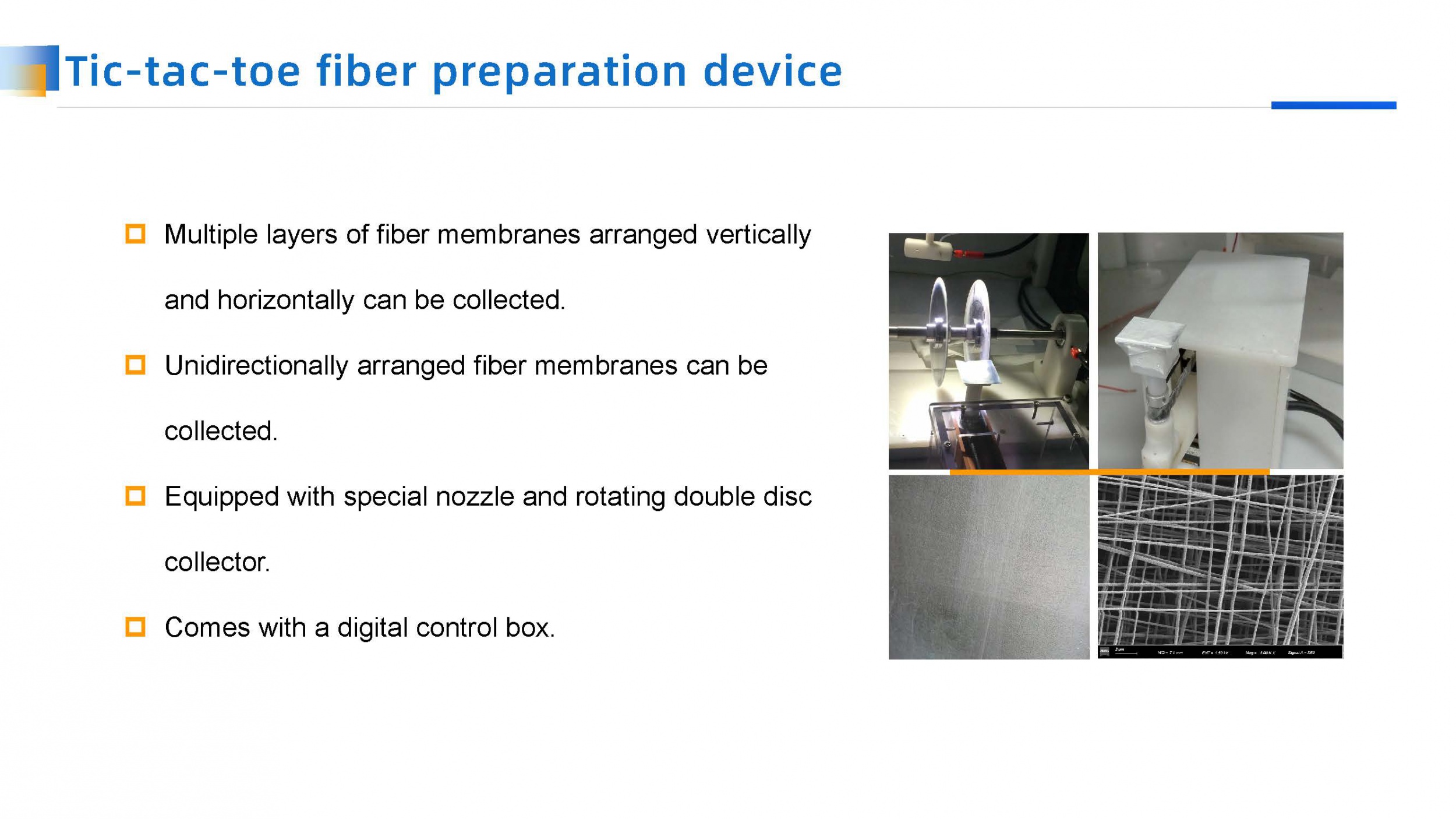

Disk collector: D=140mm



4. Plate collector with holder150mm*150mm, 1pc.

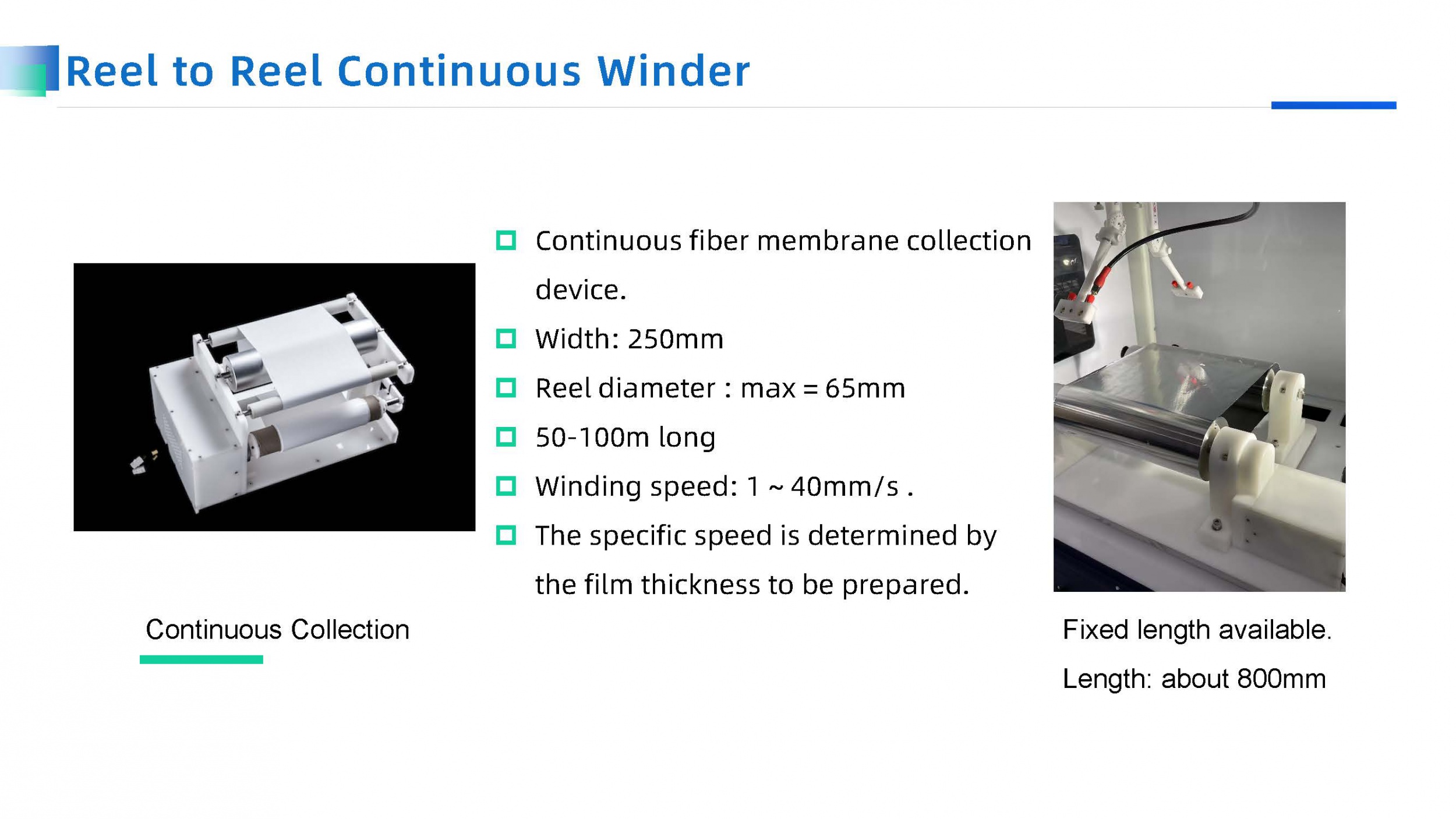

5. Continuous collector roll to roll collector, Films of about 20-100 meters can be collected continuously. ( Can be changed to other collectors if needed. )



6. Spinnerets with various insulating holders. the spinnerets can be adjusted up and down, left and right, front and back, and the spray angle can be adjusted freely.



6.1 Single-needle spinneret with holder, Can be replaced with needles of different diameters. The equipment contains 100 needles of various diameters.

6.2 Coaxial spinneret with holder

©  Equipped with 5 sets of inner and outer needles of different sizes.

©  Both inner and outer needles can be replaced.

©  The special needle ensures that the inside and outside are highly concentric.

©  2~3 times longer than common coaxial nozzles on the market, the required spinning voltage is low, and the process parameters are easy to control.

©  It can be used as a special nozzle for microspheres.

©  It can be used as an air flow assist nozzle.



6.3 Microsphere spinneret: A kind of coaxial spinneret

6.4 Side by side nozzle

6.5 V-shape spinneret: 4 needles. V-shaped four- needle system, which improves the output and achieves the highest uniformity of film formation. Two sets of double needles are located on both sides of the drum , which can form a film evenly.

6.6 Two tubeless spinnerets, for small amount solution. 0.5ml solution can be used for electrospinning experiments . No consumption of consumables, and it is environmentally friendly.

6.7 Micro-sized spinneret: 1-45 micron, which can spin superfine fibers. Or can be used for near field direct writing.

6.8 Triaxial spinneret with holder, 5-sets of changeable needles.

6.9 Multi-channel spinneret with holder, both 3 channels and 4 channels. With 5 sets of changeable needles.



7. Light source: Special designed light source, LED, cold light source, very useful for observing the spinning process by naked eyes.



8. Exhaust fan.

This device is equipped to cool down the equipment in working process, and help the solvent vaporization.



9. Environmental control system.

9.1 Dust-free Heater. It is placed on the top outside of the chamber. Heated by visible light, which makes the heating more uniform and keeps the chamber clean.

9.2 Dehumidifier: insert dry air to control the humidity inside the chamber. The dehumidifier can quickly reduce the humidity inside the chamber to about 30%, and the wind speed is stable and adjustable.

9.3 Install 3 temperature and humidity meters to display the temperature and humidity online in real time, and at the same time display the highest and lowest values within 24 hours.



10. Safety Measures:

10.1. Emergency stop button.

10.2. Door open power cut-off device. When the equipment is running, once the chamber door is opened, the high-voltage system will be automatically powered off, and other power supply systems will still work normally.

10.3. Static elimination device.

10.4. Earthing system. Multi-point grounding ensures the safety of the experiment process.

10.5. Photography mode. When the machine door is closed to shoot the spinning process, good results cannot be obtained due to the reflection of the window. Select the photography mode, you can still spin when the machine door is open, and take photos of the spinning process.



11. Slide unit for spinneret: Remote control, digital display. Back & forth moving distance: 400mm, Moving Speed: 1 ~ 15 mm/s



12. Consumables

      Syringes : 100 syringes including 10ml, 20ml, 50ml.

Needles: 100 pcs .

PTFE tubes (PP Luer connector): 60 pieces .

Reusable PP luer lock connectors + PTFE hose: 200 m .

PVA aqueous solution or PVA dry powders for electrospinning, MW80000, 10wt%.

13. Online auto cleaning device for needles. Specially designed automatic cleaning device. The position is adjustable, suitable for all kinds of nozzles mentioned above. The frequency of cleaning can be set through the touch screen.



14. Equipment dimension:   1.10m x 0.73m x 1.3m high



15. Tool box: 1 set


16. Touch screen control system:

16.1 Control the high voltage supply devices and pumps.

16.2. Control the spinnerets movement system.

16.3. Control the collector. Speed accuracy +/-1rpm.

16.4 During the working process, the parameters of each part can be changed at any time, and all motion units can be controlled to work together .

      16.5 . Automatic cleaning device for needles. Online automatic cleaning frequency can be set on touch screen.



17. Chamber.

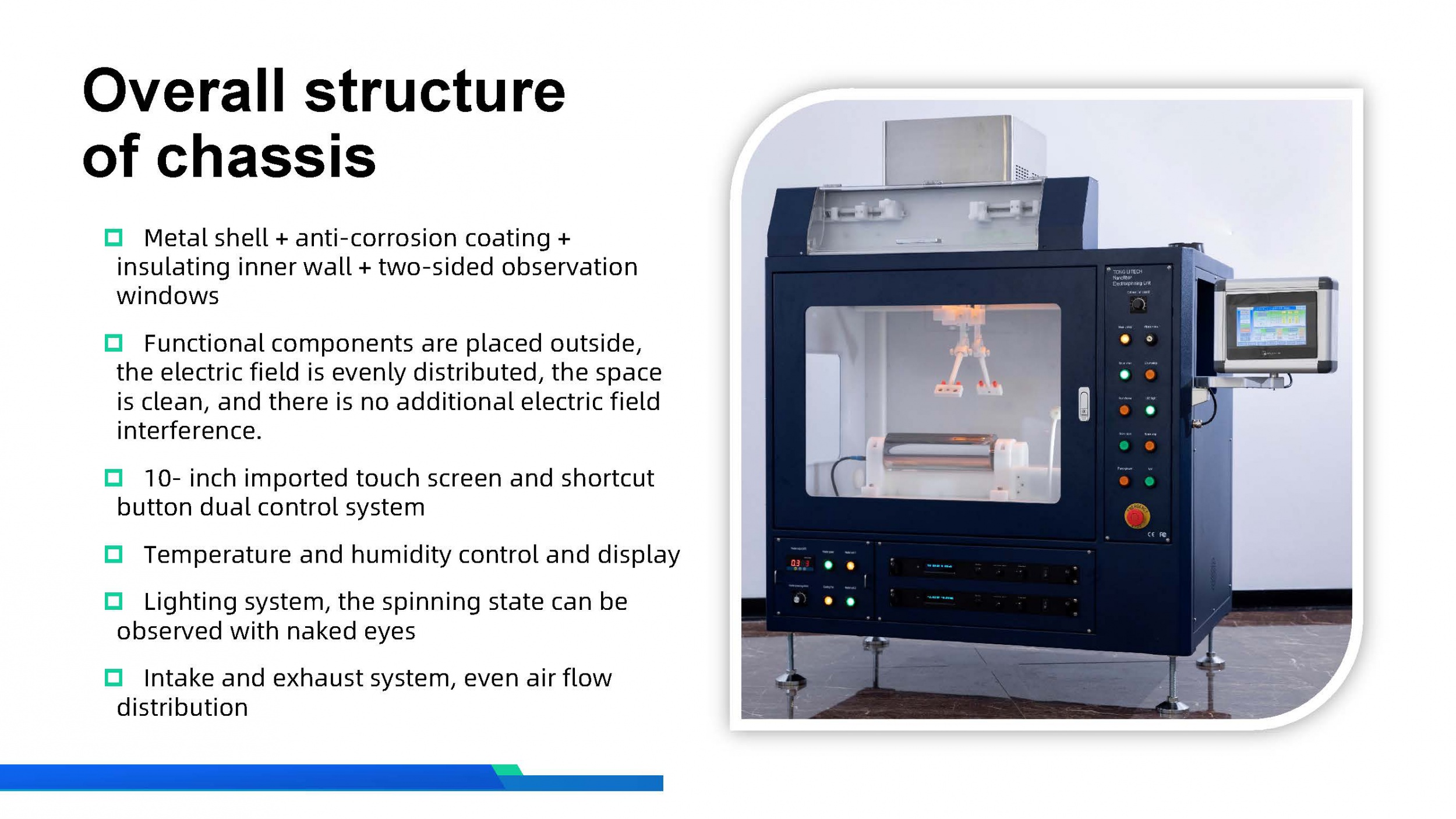

17.1 Chamber material: high-quality metal sheet (black/dark blue) + PP / PE insulated inner wall , which is easy to clean. The window of the chassis door is made of tempered glass. External visible light heating is used, which does not affect the internal cleaning of the chassis. Fiber membranes with a thickness ≥ 2mm can be prepared .

17.2 The chassis is grounded to ensure safe operation.

17.3 Insulate inner walls . The inner wall of the chassis is completely covered with insulating PE/PP sheet, which isolates and connects the negative high-voltage collector and the grounded chassis shell.

17.4 Clean room. All seams on the inner wall of the case are designed with a smooth design, there is no dead corner for cleaning, and it can be easily cleaned after spinning. All nozzles can be disassembled and taken out for cleaning, and the collectors can be placed independently, or the whole can be taken out for cleaning.

17.5 Observation windows on both sides. High translucent anti-corrosion glass.

17.6 Install three temperature and humidity meters.

17.7 Exhaust system. Adjustable exhaust rate. Built-in adjustable speed exhaust fan, external exhaust pipe, the exhaust pipe can be connected to the ventilation system or outdoors, so as to discharge the volatilized solvent)

17.8 UV disinfection lamp

17.9 Vision system, without the aid of a high-speed camera , the spinning process can be clearly observed by naked eyes.

17.10 Shielding gas inlet



18. Warranty: 1 year. After warranty, we provide lifetime maintenance.



19. Users should ensure that the power supply has reliable grounding.



B. Installation requirements



The TL-Ultra electrospinning equipment requires, among others, at least the following facilities to be present in the lab where the system will be installed:

        Ceiling height of > 2m;

        Floor space of 1.5m x 1.5 m for placement of the system.

        A table. This machine is a bench-top equipment, it can be put on a table directly.

        Reliable grounding equipment, at least 3 plug bases with good grounding.

        Exhaust pipes: Connecting with exhausting system of the machine. Inner Diameter of the pipe=100mm.



This equipment is easy to install, and we will provide detailed installation videos and rich picture information so that all users can use it easily.




Best-in-class Electrospinning, TL-Ultra
Features:
Electrospinning machine from TONG LI TECH, is equiped with both positive & negative high voltage supply devices,4-channel syringe pump, insulation inner wall, high clean chamber, various spinnerets including single needle, 5-needle, coaxial, side by side, V-shape spinnerets, various collector such as plate, rotating drum, grooved drum, mandrel, disk collectors, and moving machinary for spinnerets and collecotrs. Many different experiments can be achieved by this electrospinning machin
